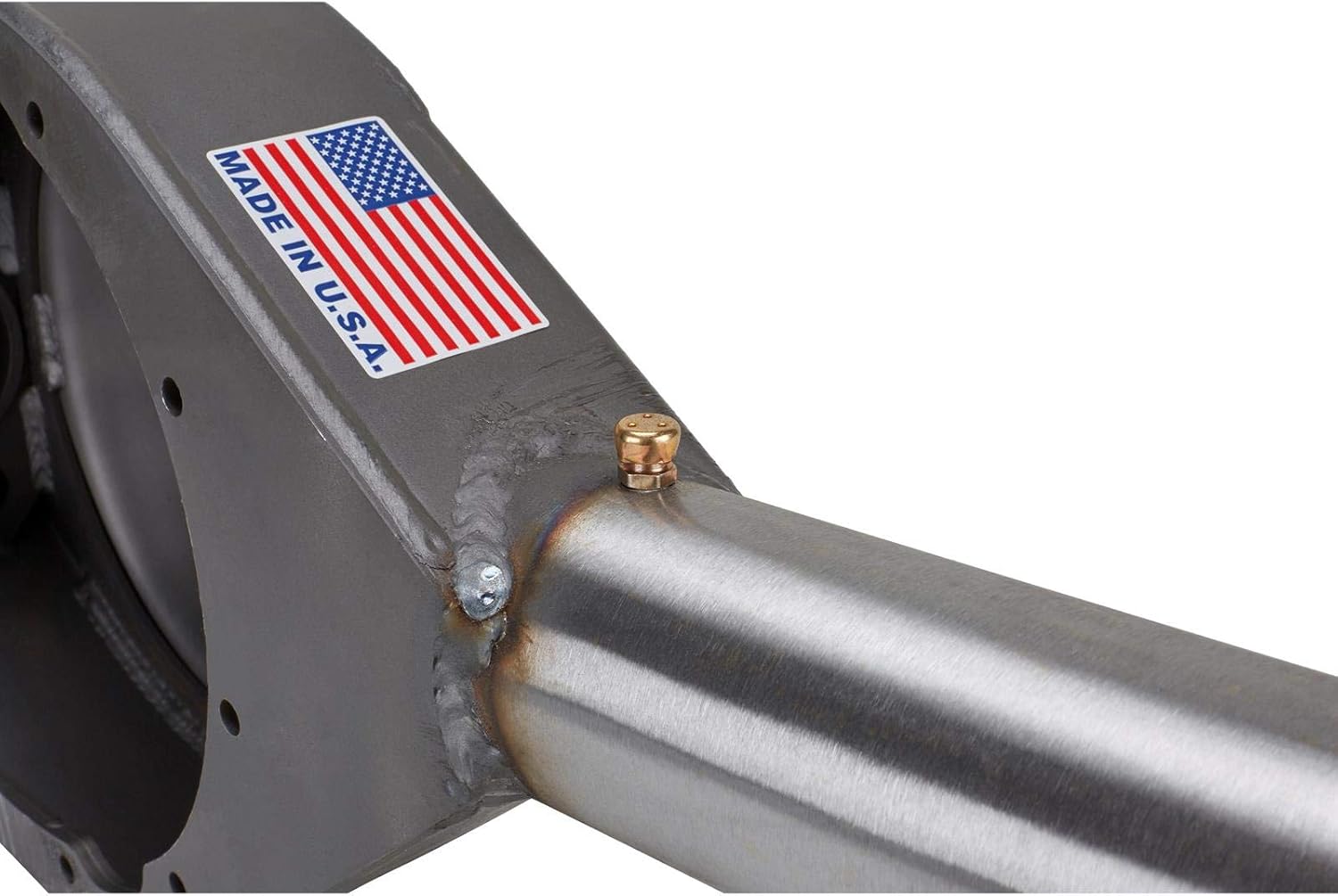

Compatible with Ford 9 Inch Fabricated Narrowed Rear End Axle Housing, 50" Width

Looking for a budget-friendly, rock-solid foundation for your custom rear suspension? Look no further. Our fabricated steelCompatible with Ford 9 inch axle housings feature all-new components for maximum durability. It’s an evolution of the rugged and reliable 9 inchCompatible with Ford platform. Designed with the Builder in Mind This housing is pumpkin-centered with uniform-length axle tubes, side-to-side. So mounting suspension brackets, especially on triangulated 3-link and 4-link systems, is much easier. Unlike factory stamped housings, these fabricated plate-steel center sections provide a wide, flat surface for easy bracket attachment. Note that the pumpkin-centered design will offset the pinion yoke about 1" to the passenger side. Axle tubes are 3” O.D. with a 3/16” wall thickness. Heavy-wall tubes, along with a larger center section, significantly reduce distortion during welding of rear-link brackets or spring pads. Billet steel “New BigCompatible with Ford” (Torino) style bearing ends are fixture-welded (3.150” O.D. bearing, with 2.50” axle flange offset). Improved Design for Greater Durability In addition to the heavy-duty bearing ends, the axle tubes are supported with bracing inside the large center housing. This reduces flex in the rear end housing, which is something you won’t find on stamped factory 9 inch housings. Plus, gears stay well-lubed and run cooler thanks to a large-capacity fabricated center (holds more gear oil than stamped housings). Axle is vented on the driver’s side. Yet, with improved durability, our fabricated axle housing is on average 2 pounds lighter than stock style housings of the same size! Add your choice of axle shafts and third member (sold separately), and you are ready to roll. Equip your race car, hot rod or 4X4 withCompatible with Ford 9 inch parts from Speedway Motors to ensure there are no weak links in your driveline combination. Total wheel-to-wheel mounting surface width is 50" (from hub-to-hub)

• 3 O.D. axle tubes with 45" flange-to-flange width (50" assembled width)
• 3/16 wall thickness
• Axle tubes are internally reinforced for additional strength, less flex
• Billet steel New Big Compatible with Ford (Torino) style bearing ends
• Accepts brake kits for 2.50 axle shaft flange offset (from housing flange)
